What is Retrieval Augmented Generation (RAG)?

October 22, 2023
10 min read
The open-source LLM evaluation framework.
Star on GitHub
What is Retrieval Augmented Generation (RAG)?

Large-language models like gpt-4 are powerful and versatile generators of natural language, but also extremely limited by the the data they were trained on. To get around this problem, there’s a lot of recent talk about leveraging RAG-based systems, but what is RAG, what it can be used for, and why should you care?

In this article, I’m going to talk about what RAG is, how to implement a RAG-based LLM application (yes, with a complete code sample).

PS. Click here for a great read on how to unit test RAG applications in CI/CD pipelines.

What is RAG?

Retrieval augmented generation is a technique in NLP that allows LLMs like ChatGPT to generate customized outputs that are outside the scope of the data it was trained on. An LLM application without RAG, is akin to asking ChatGPT to summarize an email without providing the actual email as context.

A RAG system consists of two primary components: the retriever and the generator.

The retriever is responsible for searching through the knowledge base for the most relevant pieces of information that correlate with the given input, which is referred to as retrieval results. On the other hand, the generator utilizes these retrieval results to craft a series of prompts based on a predefined prompt template to produce a coherent and relevant response to the input. In fact, a great RAG system is the product of a great retriever and generator, which is why most LLM evaluation metrics nowadays focuses on evaluating either the retriever or generator.

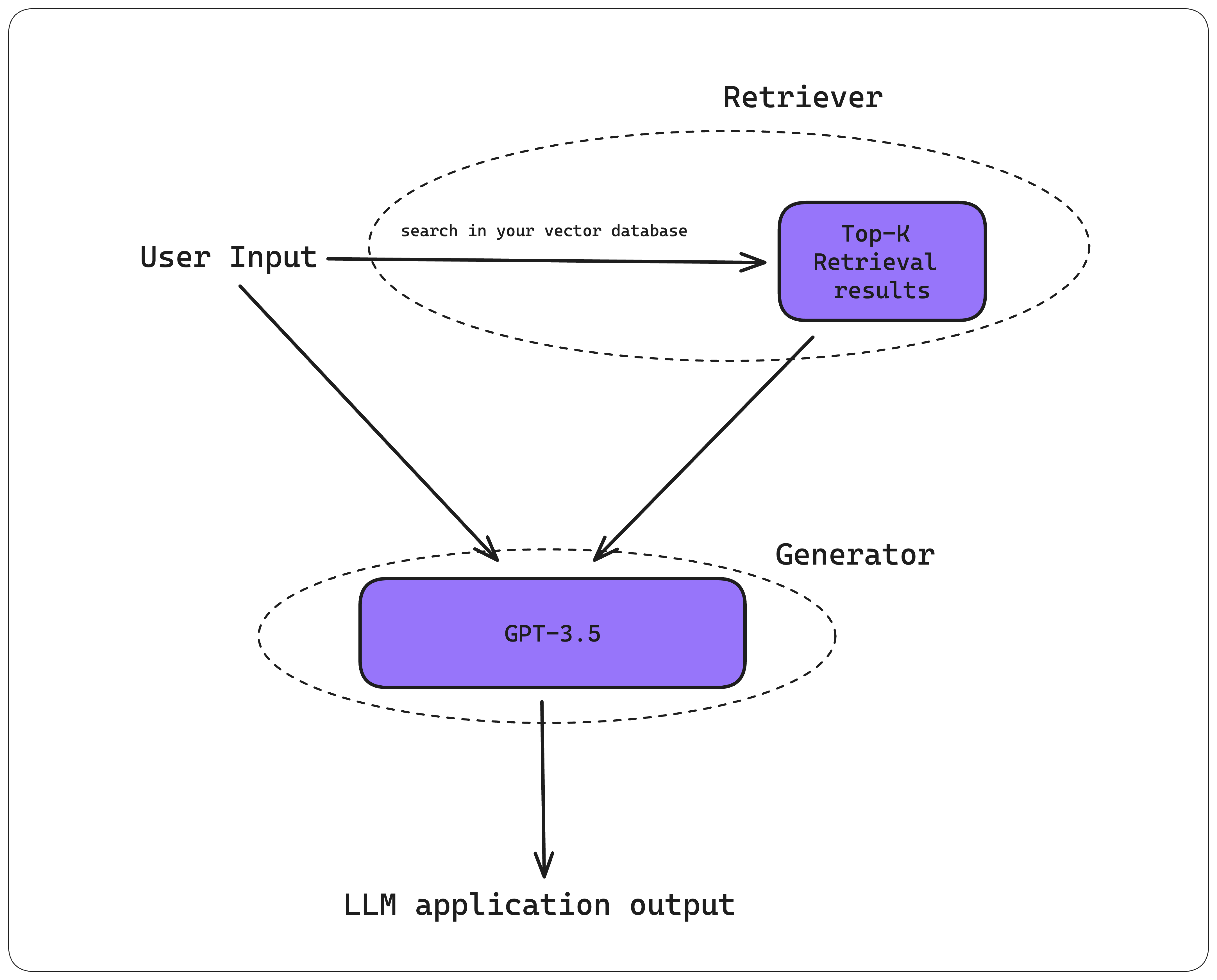

Here’s a diagram of a RAG architecture.

A typical RAG architecture

In most cases, your “knowledge base” consists of vector embeddings stored in a vector database like ChromaDB, and your “retriever” will 1) embed the given input at runtime and 2) search through the vector space containing your data to find the top K most relevant retrieval results 3) rank the results based on relevancy (or distance to your vectorized input embedding). This will then be processed into a series of prompts and passed onto your “generator”, which is your LLM of choice (gpt-4, LlaMA 2, etc.).

A retriever

For more curious users, here are the models a retriever commonly employs to extract the most pertinent retrieval results:

  1. Neural Network Embeddings (eg. OpenAI/Cohere’s embedding models): ranks documents based on their locational proximity in a multidimensional vector space, enabling an understanding of textual relationships and relevance between an input and the document corpus.
  2. Best Match 25 (BM25): a probabilistic retrieval model that enhances text retrieval precision. By considering term frequencies with inverse document frequencies, it takes into account term significance, ensuring that both common and rare terms influence the relevance ranking.
  3. TF-IDF (Term Frequency — Inverse Document Frequency): calculates the significance of a term within a document relative to the broader corpus. By juxtaposing a term’s occurrence in a document with its rarity across the corpus, it ensures a comprehensive relevance ranking.
  4. Hybrid Search: optimizes the relevance of the search results by assigning distinctive weights to different methodologies, such as Neural Network Embeddings, BM25, and TF-IDF.


(RAG) has various applications across different fields due to its ability to combine retrieval and generation of text for enhanced responses. Having worked with numerous companies building LLM applications at Confident, here is the top four use cases I’ve seen:

  1. Customer support / user onboarding chatbots: retrieve data from internal documents to generate more personalized responses. You can find a tutorial on how to do it here.
  2. Data Extraction. Interestingly, we can use RAG to extract relevant data from documents such as PDFs. You can find a tutorial on how to do it here.
  3. Sales enablement: retrieve data from LinkedIn profiles and email threads to generate more personalized outreach messages.
  4. Content creation and enhancement: retrieve data from past message conversations to generate suggested message replies.

In the following section we’ll be building a generalized QA chatbot, and you’ll be able to customize it’s functionality into any of the use cases listed above by tweaking prompts and data stored in your vector database.

Confident AI: Everything You Need for LLM Evaluation

An all-in-one platform to evaluate and test LLM applications, fully integrated with DeepEval.

LLM evaluation metrics for ANY use case.
Real-time evaluations and  monitoring.
Hyperparameters discovery.
Manage evaluation datasets on the cloud.

Project Setup

For this project, we’re going to build a question-answering (QA) chatbot based on your knowledge base. We’re not going to cover the part on how to index your knowledge base, as that’s a discussion for another day.

We’re going to be using python, ChromaDB for our vector database, and OpenAI for both vector embeddings and chat completion. We’re going to build a chatbot on your favorite Wikipedia page.

First, set up a new project directory and install the dependencies we need.

mkdir rag-llm-app
cd rag-llm-app
python3 -m venv venv
source venv/bin/activate

Your terminal should now start with something like this:


Installing dependencies

pip install openai chromadb

Next, create a new `` file — the entry point to your LLM application.


Getting your API keys

Lastly, go ahead and get your OpenAI API key here if you don’t already have one, and set it as an environment variable:

export OPENAI_API_KEY="your-openai-api-key"

You’re good to go! Let’s start coding.

Building a RAG-based LLM application

Begin by creating an Retriever class that will retrieve the most relevant data from ChromaDB for a given user question.

Open and paste in the following code:

import chromadb
from chromadb.utils import embedding_functions
import openai

client = chromadb.Client()

class Retriver:
    def __init__(self):
    def get_retrieval_results(self, input, k):
        openai_ef = embedding_functions.OpenAIEmbeddingFunction(api_key="your-openai-api-key", model_name="text-embedding-ada-002")
        collection = client.get_collection(name="my_collection", embedding_function=openai_ef)
        retrieval_results = collection.query(
        return retrieval_results["documents"][0]

Here, `openai_ef` is the embedding function used under the hood by ChromaDB to vectorize an input. When a user sends a question to your chatbot, a vector embedding will be created from this question using OpenAI’s `text-embedding-ada-002` model. This vector embedding will then be used for ChromaDB to perform a vector similarity search in the `collection` vector space, which contains data from your knowledge base (remember, we’re assuming you’ve already indexed data for this tutorial). This process allows you to search for the top K most relevant retrieval results on any given input.

Now that you’ve created your retriever, paste in the following code to create a generator:


class Generator:
    def __init__(self, openai_model="gpt-4"):
        self.openai_model = openai_model
        self.prompt_template = """
            You're a helpful assistant with a thick country accent. Answer the question below and if you don't know the answer, say you don't know.


    def generate_response(self, retrieval_results):
        prompts = []
        for result in retrieval_results:
            prompt = self.prompt_template.format(text=result)

        response = openai.ChatCompletion.create(
            messages=[{"role": "assistant", "content": prompt} for prompt in prompts],

        return response["choices"][0]["message"]["content"]

Here, we constructed a series of prompts in the `generate_response` method based on a list of `retrieval_results` that will be provided by the retriever we built earlier. We then send this series of prompts to OpenAI to generate an answer. Using RAG, your QA chatbot can now produce more customized outputs by enhancing the generation with retrieval results!

To wrap things up, lets put everything together:


class Chatbot:
    def __init__(self):
        self.retriver = Retriver()
        self.generator = Generator()
    def answer(self, input):
        retrieval_results = self.retriver.get_retrieval_results(input)
        return self.generator.generate_response(retrieval_results)

# Creating an instance of the Chatbot class
chatbot = Chatbot()

while True:
    user_input = input("You: ")  # Taking user input from the CLI
    response = chatbot.answer(user_input)
    print(f"Chatbot: {response}")

That’s all folks! You just built your very first RAG-based chatbot.


In this article, you’ve learnt what RAG is, some use cases for RAG, and how to build your own RAG-based LLM application. However, you might have noticed that building your own RAG application is pretty complicated, and indexing your data is often a non-trivial task. Luckily, there are existing open-source frameworks like LangChain and lLamaIndex that allows you to implement what we’ve demonstrated in a much simpler way.

If you like the article, don’t forget to give us a star on Github ❤️:

You can also find the full code example here:

Till next time!

* * * * *
